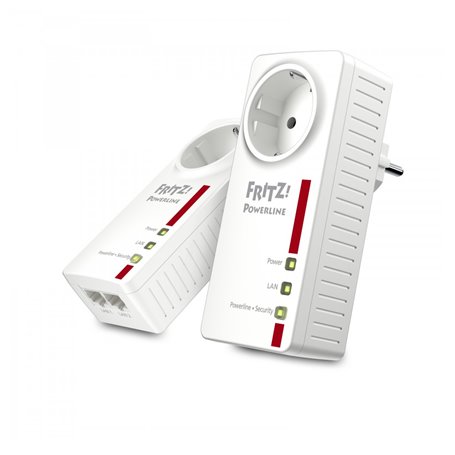

AVM FRITZ!Powerline 1220E - 1200Mbit/s built-in Ethernet port PowerLine - white

Gigabit home network from any wall outlet

the FRITZ!Powerline 1220E set makes each socket two fast and secure Gigabit Network Connections. With Gigabit Powerline up to 1,200 MBit/s and the latest 2x2 MIMO technology are significantly more robust connections, greater range and higher throughput. This allows the gerate-duo broadband applications with the highest demands in the last angle of house and apartment.

Powerline the 1.20 0HE-class
the FRITZ!Powerline 1220E Set connects network devices such as computers, TV or game consoles quickly and reliably even over great distances in the home network. For each adapter, 2 ultra fast Gigabit LAN ports available. With the networking via the power line are long distances as well as obstacles, such as walls and ceiling, easily mastered. To Powerline adapters the 500- and 200-MBit/s-class allows FRITZ!Powerline 1220E significantly more transmission capacity and more robust connections - with high energy efficiency. More sophisticated broadband applications will be running in parallel can be used.

Powerful 2x2 MIMO technology
the FRITZ!Powerline 1220E set is ideal for bandwidth-intensive network applications, such as the transfer of high-definition video (also in 3D) as well as high-speed Internet access, online gaming, web TV, NAS-connection and video on demand. Even long distances between the adapters do not adversely affect the quality of the transfer. The 2x2 MIMO technology allows simultaneous use of two pairs of wires up to 60% greater range in the electricity network, with significantly more stable connections and Gross transmission rates up to 1200 MBit/s. You cannot use both pairs are used simultaneously, the automatic selection of the better move wire pair (diversity) for a robust power line transmission.

easily and safely from the factory
prominent to AVM FRITZ!Powerline products is the individual pre-coding from the factory, which is the immediate and safe commissioning. Once the adapter is plugged into the respective outlets and via LAN cable with the FRITZ!Box as well as the networked devices are connected to the powerline network with an individual AES 128-bit encryption (Plug & Play). The FRITZ!Powerline 1220E set is compatible with current devices of the 1200, 500 and 200-MBit/S-Class. Updates will be slightly above the program FRITZ!powerline or via the FRITZ!Box-Bedienoberflache.

AVM FRITZ!Powerline 1220E set at a glance:
- Use of the outlet as a secure Internet and network access (powerline)
- Ultra-fast 1200 Mbit/s, ideal for NAS applications and HD streaming
- compatible to all common powerline adapters
- maximum range and more robust connection (2x2 MIMO, diversity)
- Simple Commissioning with factory-matched adapter (Plug & Play)
- Integration of additional adapters quickly and securely with the push of a button.
- Secure transmission through modern, individual 128-bit AES encryption
- Two ultra fast Gigabit LAN ports per adapter that is ideal for data-intensive applications such as HD streaming
- complete integration and overview of powerline adapters in the FRITZ!Box user interface
- connection overview as well as functionality and security updates in the program FRITZ!Powerline
- Intelligent energy management and minimal stand-by consumption
- Integrated socket with line filter for the connection of electrical equipment, no power connection is lost

Power
data transfer rate (maximum): 1200 Mbit/s
Built-in Ethernet port: Yes
Wireless: No
Plug: Type F
Built-in socket: Yes
Interface Ethernet LAN: Gigabit Ethernet
Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
Number of Ethernet LAN ports (RJ-45): 1

Power
Power consumption (typical): 3 W
Power consumption (standby): 1 W
AC input voltage: 230
AC Input Frequency: 50

Design
Product Color: White
LED indicators: LAN, power

Weight and dimensions
Width: 59 mm.
Depth: 78 mm
Height: 132 mm.
Weight: 440 g
box width: 125 mm.
packaging depth: 85 mm
Packaging Height: 185 mm
Package Weight: 700 g

Packaging Contents
quantity per package: 2 pieces(e)
Quick Installation Guide: Yes
Supplied Cable: DSL
