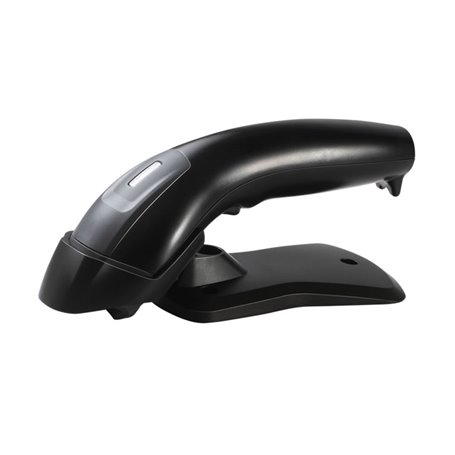

Wireless CCD Barcode Scanner KC-5200ZB
zoom_out_map
chevron_left chevron_right
New

Wireless CCD Barcode Scanner KC-5200ZB

beenhere Free delivery on orders above €100.

local_shipping Delivery Times:

CY01: 1-2 working days.

EU01: 4-8 working days.

EU02: 4-8 working days.

GC: 10-16 working days.

Interface

HID USB / USB COM emulation

Barcodes supported

All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacy, Code 128, CODABAR/NW7, Interleave 2 of 5, Industrial 2 of 5, Matrix 2 of 5, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, GS1 DataBar

RF standard

2.4G

Working Distance

100M (Open environment)

Optical sensor

2500 pixels

Light Source

Red LED (660nm)

Resolution

4 mil

Depth of Field

30 – 200mm (13mil)

Scan rate

270 scans/sec

PCS

45%

Operating temperature

0 to 40 (32℉ to 104℉)

Storage temperature

-40℃ to 70℃ / -40℉ to 158℉

Operating Humidity

10% - 95% RH non-condensing at 122℉ /50℃

 Humidity

10% - 85% RH non-condensing at 158℉ /70℃

Shock resistance

1.5m drops

Weight

140g

Dimensions

186mm (L) x 67mm (W) x91mm (H)

Housing Material

ABS plastic

Battery Type

Polymer 3.7V

Battery Capacity

1200mAh good for 50,000 scan per charge

Charge

By USB power retrieving cable

Time Of Charge

About 4 hours

KC-5200ZB
Details
Barcode Scanner Sensor
CCD
Barcode Scanner Type
Cordless
Barcode Scanner Connectivity
2.4G Wireless
